MAT FITS DEXTER 9000 10000 9k & 10k HEAVY Duty Oil Hub & Drum only with Races & 5/8″ Studs
$499.99

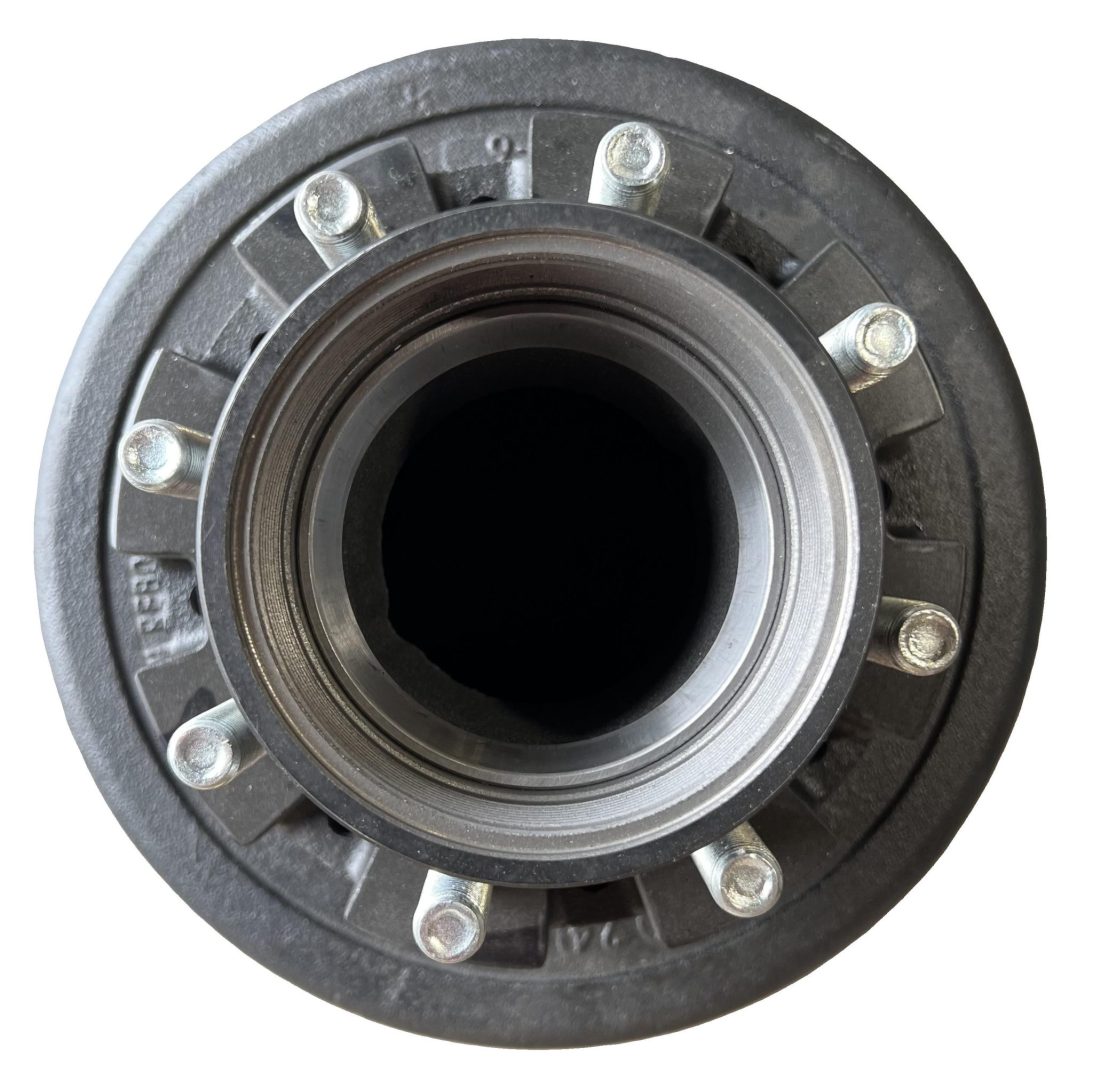

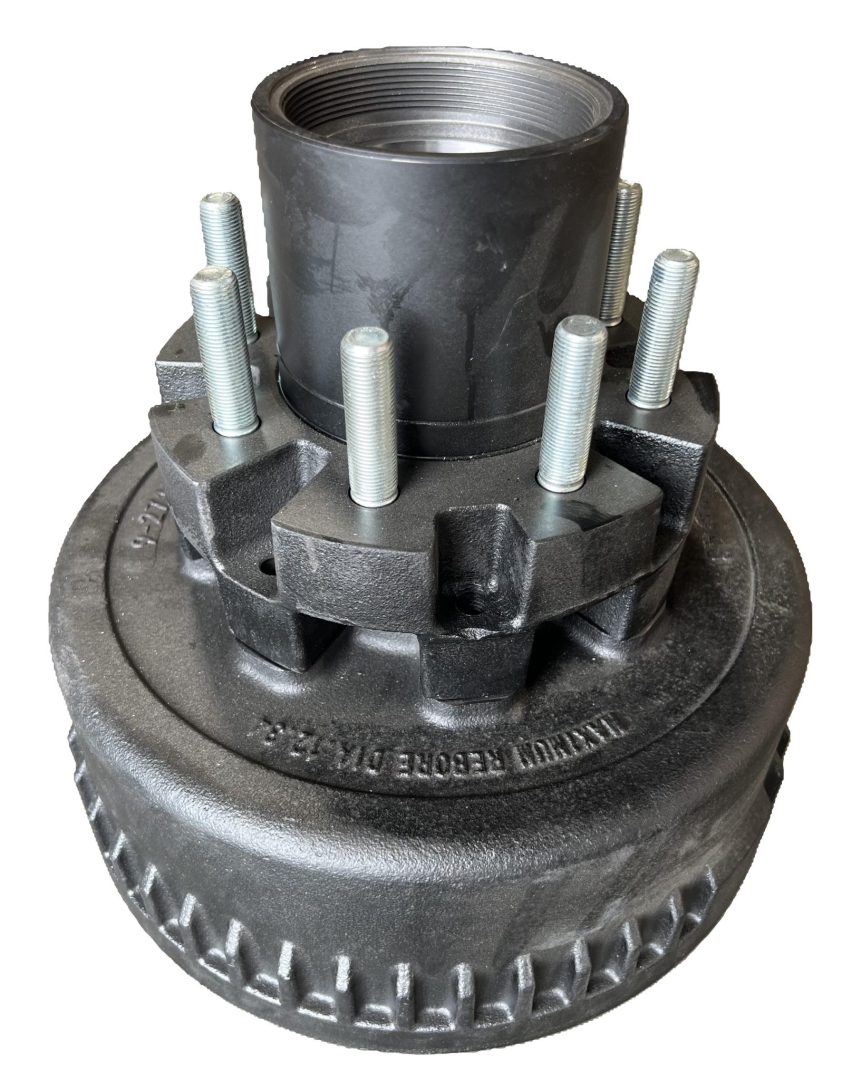

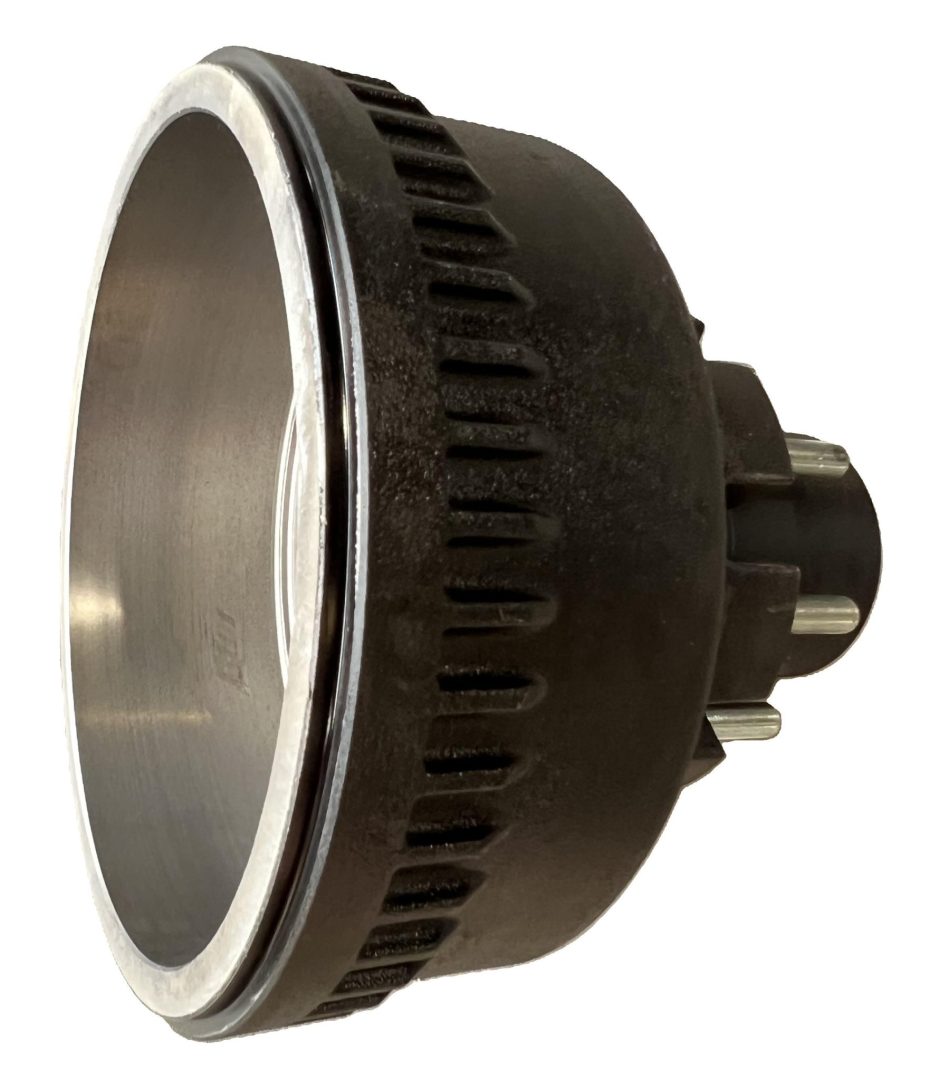

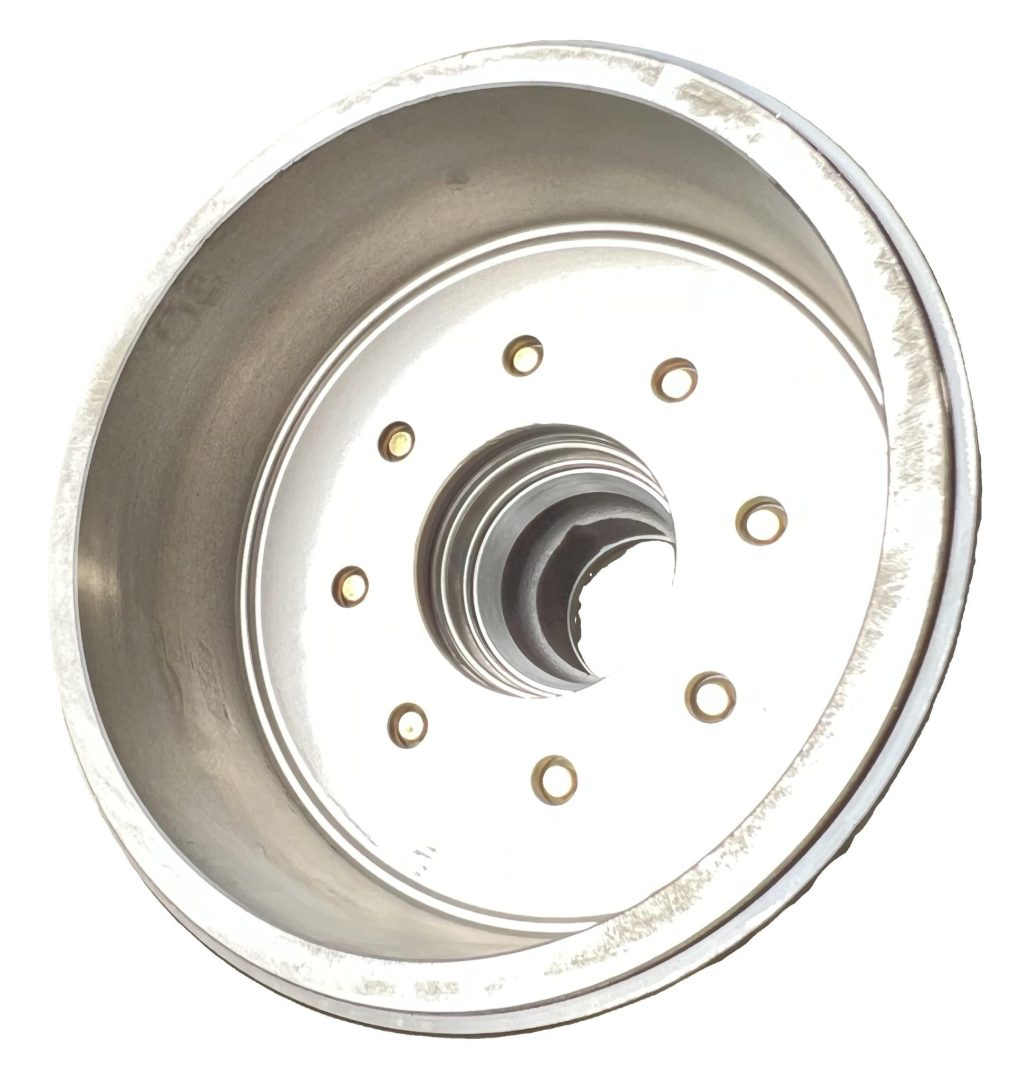

9k & 10k HEAVY Duty Oil Hub & Drum only with Races & 5/8″ Studs 2Pc unit for 9-27 Drum & 8-214 Hub
Description
MAT for Dexter Axles
2PC Design using 9-27 Drum and 8-214 Hub
WILL NOT MATCH 9 10K GENERAL DUTY. GENERAL DUTY DRUMS ARE STAMPED WITH 9-44 OR 9-123
- Coned 5/8″ Wheel Nut: 6-109
- Oil Cap, O-Ring & Plug: 2136, 10-163 & 46-32
- Oil Spindle Nut, Tongue Washer & Tang Washer: 6-84, 5-60 & 5-59
- Oil Seal: 10-56
- Inner Bearing: 395s
- Outer Bearing: 387a
- Bearings, Seals, Oil Cap and Nuts Sold Separately
- Bolt Pattern: 8 on 6-1/2″
- Includes Races & 5/8″ Studs
- 9,000 lb & 10,000 lb Capacity HAEAVY Duty Oil Hub & Drum Only For Dexter
- Pilot Diameter: 4.75″
Additional information
| Weight | 95 lbs |
|---|---|
| Dimensions | 14 × 14 × 14 in |
