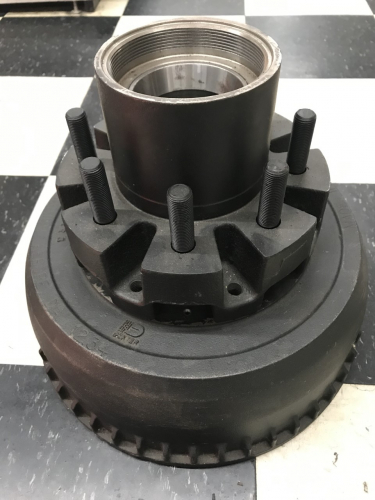

DEXTER 9k & 10k General Duty Oil Hub & Drum only with Races & 5/8″ Studs

Description

REPLACES 1-PC & 2-PC HUB/DRUM MFG. AFTER AUGUST 2009

8-430-5 = 2PC Design using 9-123 Drum and 8-430 Hub

• Note: Dexter’s One piece (after July 2009)and Two piece (before July 2009) Hub Drum systems are not interchangeable.
• Coned 5/8″ Wheel Nut: 6-109
• Before July 2009 Dexter use a two piece hub drum system: 8-288-03 & 9-44-1
• Oil Cap, O-Ring & Plug: 2188, 10-163 & 46-32
• Oil Spindle Nut, Tongue Washer & Tang Washer: 6-96, 5-70 & 5-71
• Oil Seal: 10-51
• Inner Bearing: 387A
• Outer Bearing: 25580
• Bearings, Seals, Oil Cap and Nuts Sold Separately
• Bolt Pattern: 8 on 6-1/2″
• Includes Races & 5/8″ Studs
• 9,000 lb & 10,000 lb Capacity General Duty Oil Hub & Drum Only – Dexter
• Pilot Diameter: 4.75″
